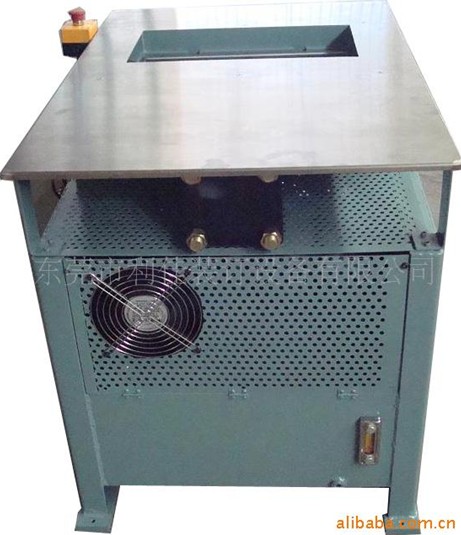

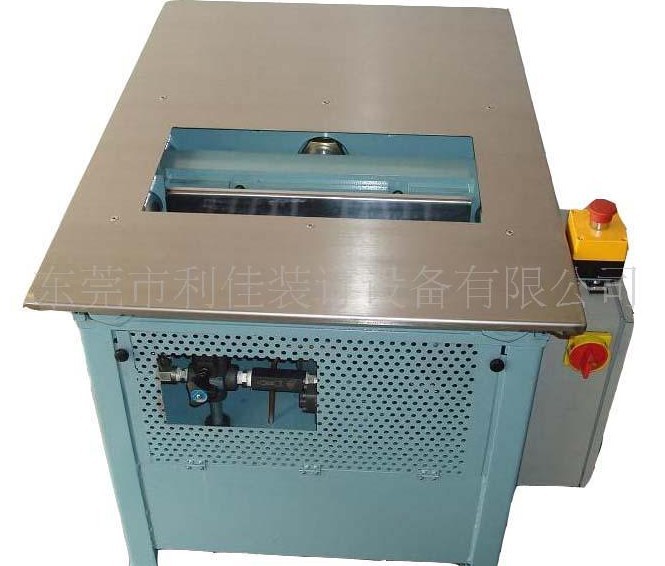

Name： LJ201-30T Hydraulic Book Back Pressing Machine
Model: LJ201-30T
Brand: lijia
http://player.youku.com/player.php/sid/XNDEzMTEyMTMy/v.swf
The Main Technical Parameters:
型號(hào) LJ201-30T
書芯厚度 20-120 mm
壓緊板長度 480 mm
往返速度 10Stroke/Min
最大壓緊力 30T
電機(jī)功率 7.5 kw
外形尺寸 710*1090*900mm
機(jī)器重量 600kg
Feature:
LJ201 hydraulic book back pressing machine was based on design from each
other, to improve shortcomings exposed by the various models in use, to absorb
their advantage; This machine hasthe following characteristics:
1. Elegant, easy to operate, the entire surface of the stainless steel plate to
facilitate Qi Shu put the book
2. Convenient adjustment: the books bit touch switch photoelectric switch, and
there is time to adjust, convenient to the thickness of the book left the book;
equipped with a trip switch the machine on the right side panel, pressure books bit
easy adjustment; knob before the bottom of the machine has a pressure regulator
pressure regulator convenient;
3. Double safety protection; machines right hand side has the bulk of the self-
locking button, press the board itself back of the machine; activities of the board
has a radio eye protection, cover the activities of the board of this electric eye
itself back in order to ensure the personal safety;
4. Native unique design flexibility platen; Usually manufacturers pressure back
machine platen is fixed, the surface of the book block when the pressure Book
appears indentation, to take measures that is, on the platen by the thickness of the
double-sided stickers cardboard to eliminate books indentation . But cardboard
often shedding sliding inconvenient. According to this scenario, the Company
designed to produce a flexible platen has been patented. Pressed books in normal
bookends, platen automatically backswing, eliminating the indentation books wins
pressed;
5. This machine is designed to ensure that the books binding quality book block
by sewing or with page after relatively loose, the back thicker difficult on the
cover or plastic, made out of books after this machine pressed flat, firm, crisp;
common sewn binding books, hardcover book block is pressed.
6. The Secretary may, depending on customer requirements designed to produce
a variety of pressure hydraulic hit back machine. 7 tons, 12 tons, 20 tons, 30
tons, and other models; 12 tons under normal circumstances hit back machine
books has been able to meet the pressure back demand.
Why you choose us?
1.The elasticity pressing plate without creasing.
2.Double safety protection.
3.Pressure is easy to adjustment.
4.whole panel is convenient to put books.
5. Continuous action and not need to prompt .
6. As direct factory,we can be designed more pressure as you need.
About LiJia Comany:
Established in 2004. Dongguan LiJia Binding Equipment Co., Ltd located in
Chang’an Town, Dongguan city, Guangdong province, China
professional producing of post-press finishing manufacturer in China, Our main
products are Hardcover Cashing-in machine, book block rounding machine, Book
block rounding machine, Book block ridging machine, book pressing machine,
Hydraulic book packing machine, paperboard slitter, paperboard cross cutter and
so on.
Since established, Our Company always adhere of “Best service, Best quality”
the core idea. And strive to bring customers the best quality and best service. The
company development and design's product, like Book Block Rounding Machine,
book block ridge machine, hydraulic cutting two horns machine and other
products are domestic initiative, Has been successfully applied for national
patents, was the best cost-effective in the similar products. Also can make to
order as each kind of machine according to the customer’s requirement. Welcome
OEM as your need.
We will continue to be customer oriented, TO the best quality and service to win
the trust of customers and work!
Contact us:
